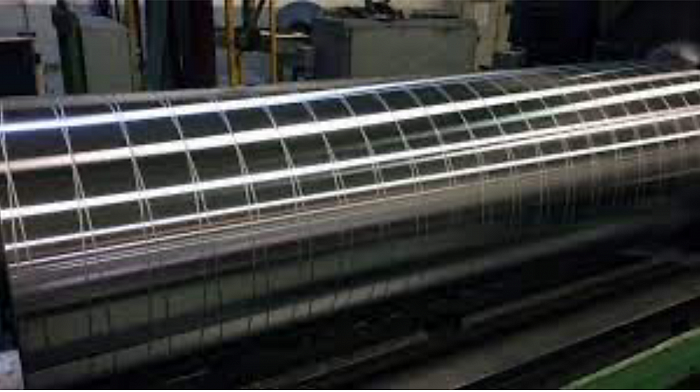

PRECISION ROLL GRINDING & BALANCING
Intech Machine grinds and balances all paper machine roll and cover types. Pre-grind and post grind profiles are taken using our customized Pro-Mic Roll Measurement System. Pre-grind profiles are analyzed to provide feedback to our customers regarding operational wear, or loading issues that can be corrected to optimize performance and extend grind cycle frequencies. A Gem Super Finisher is also utilized to assure consistent surface finish requirements.
ISO 21940 G Grade specifications are used for balancing rolls on our SCHENK balancing machine. Most paper machine rolls are balanced at G1.0 specifications with some sensitive rolls being balanced to G.1 specifications. Intech Machine co also offers a unique service of checking baseline vibration analysis of bearings to minimize the chance of a defective bearing being placed in service.

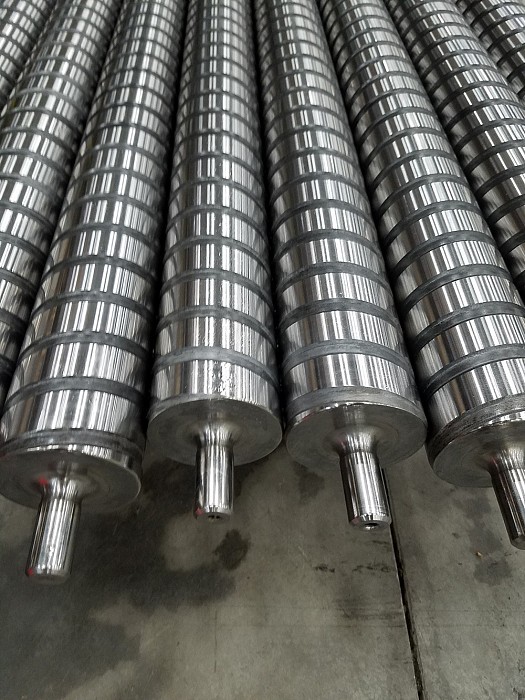

NEW ROLL MANUFACTURE
We put our decades of experience in repairing and maintaining rolls into our engineered new roll manufacturing process. Intech Machine co designs and manufactures new rolls including press rolls, wire rolls, felt rolls, and reel spools. We understand that most replacement rolls operate at parameters drastically above their original design. Intech Machine co will determine today’s operating environment and incorporate it into a suitable design for the future.
Intech Machine Co,
can design, fabricate, and manufacture a variety of precision rolls, critical rolls, and process rolls based on your requirements, with or without existing manufacturing prints or OEM drawings. Our engineering team can reverse engineer a new roll to match or exceed your current roll’s performance. Our process includes taking detailed measurements of all critical dimensions, creating the CAD drawing, proposal of design enhancements, manufacturing in-house, and managing the process from start to completion.
Heavy Duty
OD Roll Grinders

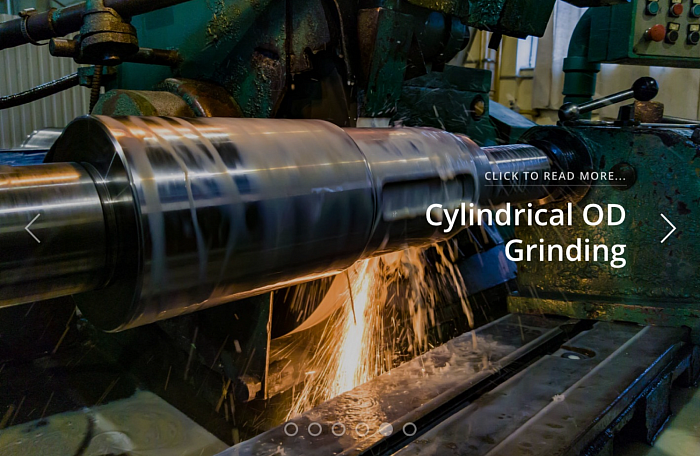

Cylindrical OD roll grinders with capacities from 3” to 96” diameter and 6” to 276” length with the ability to do crown and concave grinding.
Extensive
Equipment
Complete line of polishing and matte finishing equipment on-site and optical finishing equipment with varying capacities to 84” diameter and 200” length
1. Roll Types:
a. Press Rolls: Precision grinding services for press rolls used in paper mills to ensure optimal nip pressure and uniform sheet formation.
b. Calendar Rolls: Grinding solutions for calendar rolls, improving surface finish and dimensional accuracy for precise paper thickness control.
c. Suction Rolls: Precision grinding for suction rolls, enhancing their suction capability and ensuring efficient water removal during paper production.
d. Dryer Rolls: Grinding services for dryer rolls, optimizing heat transfer and eliminating surface defects to improve paper drying efficiency.
e. Wire Rolls: Precision grinding for wire rolls used in the papermaking process, ensuring smooth wire contact and uniform paper formation.
2. Grinding Techniques:
a. Cylindrical Grinding: High-precision grinding method for achieving accurate cylindrical shapes and dimensions of paper pulp rolls.
b. Centerless Grinding: Efficient grinding technique for achieving precise diameter control and surface finish on roll exteriors.
c. Surface Grinding: Surface refinement process to eliminate imperfections and improve flatness for enhanced roll performance.
d. Profile Grinding: Customized grinding technique to create specific roll profiles or contours for specialized paper production requirements.
3. Grinding Surfaces:
a. Crown Grinding: Precision grinding of roll crowns to achieve desired surface profiles for proper paper web control and uniform pressure distribution.
b. Taper Grinding: Accurate taper grinding to ensure uniform pressure distribution across the roll surface, optimizing paper quality and performance.
c. Surface Finish Enhancement: Finishing processes such as polishing and superfinishing to achieve desired surface characteristics, reducing friction and wear.
4. Complete Roll Service for Paper Pulp Rolls:
a. Roll Inspection and Assessment: Thorough examination of rolls to identify defects, wear patterns, and dimensional deviations.
b. Roll Grinding and Dimensional Corrections: Precise grinding procedures to restore original dimensions, shape, and surface finish.
c. Balancing and Vibration Analysis: Balancing services to minimize vibration and ensure stability during operation, reducing machine downtime.
d. Roll Coating and Surface Treatments: Application of specialized coatings and treatments to enhance roll performance, such as ceramic coatings for wear resistance.
e. Roll Maintenance Planning and Documentation: Comprehensive roll maintenance strategies, including scheduling, historical data tracking, and maintenance records.
The Ultimate Roll Grinding Shop:
At our state-of-the-art roll grinding facility, we offer the ultimate solution for precision grinding and roll repair in pulp and paper mills. Our highly skilled technicians and advanced grinding equipment ensure superior results and optimal roll performance. With a focus on attention to detail and quality, our services are tailored to meet the specific needs of each roll type and application.
From press rolls to calendar rolls, suction rolls to dryer rolls, and wire rolls to any other critical roll types used in paper production, we provide comprehensive grinding solutions to enhance efficiency, quality, and longevity. Our expertise in cylindrical, centerless, surface, and profile grinding techniques allows us to achieve precise dimensions, surface finish, and shape control on every roll.
Understanding the importance of critical grinding surfaces, we specialize in crown grinding, taper grinding, and surface finish enhancement to ensure the highest level of roll performance. Our complete roll service encompasses roll inspection and assessment, grinding and dimensional corrections, balancing and vibration analysis, roll coating and surface treatments, as well as meticulous maintenance planning and documentation.
Choose our ultimate roll grinding shop for unparalleled expertise, advanced grinding techniques, and a commitment to excellence. Experience the difference in roll performance and reliability with our precision grinding services tailored for pulp and paper mills.
The pulp and paper manufacturing industry plays a vital role in supplying essential materials for various sectors worldwide. With its diverse range of products, this industry relies on efficient machinery and equipment to ensure smooth operations. In this paper, we would like to introduce Intech Machine Co and highlight our expertise in the rebuilding of paper machine rolls and gearboxes to enhance performance and reliability.
Roll Rebuilding Expertise:
At Intech Machine Co, we specialize in grinding and balancing all paper machine roll and cover types. Our comprehensive approach begins with the utilization of our customized Pro-Mic Roll Measurement System, which allows us to obtain pre-grind and post-grind profiles. By analyzing pre-grind profiles, we can provide valuable feedback to our customers, identifying operational wear or loading issues that can be corrected to optimize performance and extend grind cycle frequencies.
To ensure consistent and precise results, we utilize the Gem Super Finisher, which guarantees the attainment of required surface finish specifications. This attention to detail in surface quality contributes to the overall performance and longevity of the rolls.
Conclusion:
Intech Machine Co understands the critical role played by the pulp and paper manufacturing industry and is dedicated to providing reliable solutions for roll rebuilding and gearbox rebuilding. Our advanced technologies, customized measurement systems, and skilled technicians enable us to deliver high-quality results that optimize performance, extend equipment life, and minimize downtime.
We are honored to collaborate with companies in the pulp and paper manufacturing industry and look forward to contributing to their success by providing exceptional rebuilding services.
